Island Maid / Orby

Orby / Island Maid

The remains

Orby / Island Maid

Plaque at Purton

Significance

Once considered the pride of the Plymouth fleet following her carvel construction in 1863, the Island Maid is surely a candidate for coining the term Hearts of Oak. Fitted to Lloyds Class A1 registry in July of that year (a class she maintained until 1907), she was initially yellow metalled and operated in the Mediterranean trade, possibly as a fruit schooner where speed was all important to deliver the precious cargoes in good order. That said her sturdy construction would have placed her in good stead whilst employed in the booming cattle trade from the southern Spanish port of Corunna to the south coast as outlined in the following extract by Basil Lubrook in the 1927 publication Last of the Winjammers Vol. 1

The Corunna Cattlemen

Before going onto the fish carriers, there were some little schooners running out of the channel which deserve a mention. The first of these were the cattlemen. Between 1855 and 1880 cattle were imported from Spain for the Army and Navy commissariat. The contract was in the hands of a Simon Hine, and he chartered a lot of little schooners, which picked up cattle at Corruna and landed them either at Falmouth, Plymouth or Portsmouth.

The following were the best known of these cattle schooners: Pandora of Salcombe, Little Vixen and Elfrida of Plymouth, Sam Slick of Brixham J. B. Gray and Little Dorrit of Fowey, and the Florence and Hezibah of Truro. These little vessels carried 60 head of cattle, the bullocks standing on the ballast, which was stowed on top of the water tanks. Back and forth across the Bay of Biscay, these little schooners plied the year round. Little Dorrit was considered the fastest, but the Little Vixen once ran from Corunna to Plymouth in 36 Hours…… (Lubrook, pp 445 446)

This in turn makes her almost complete destruction, at the hands of scrap metal collectors c. 1953, all the more poignant especially as it is felt her sturdy oak construction would have survived relatively intact whilst positioned well within the upper reaches of the littoral zone and free from all of the highest of tides. Instead and albeit of the sparsest remains of her rudder stock, the 95ft Island Maid has been completely eradicated and her location is hidden to all bar the keenest of eyes via a slight hump with in the rivers grassed bank.

To this end, the author firmly believes her keel and bottom boards remain in situ and as such worth of further investigation and study.

Gone but emphatically not forgotten

Specification
Island Maid
LPB Identification
No. 20
DRM Identification
No. 11
DJW Identification
No. 21
Source (DMc)(HCJ)(JP)(JC)(RS)(RD)(GF)(PN)(GH)(WR)
Name P.o.R Description Dates
Island Maid
Ren Orby
Plymouth 26/63
Gloucester 3/17
wood Schooner
Barge
July 1863 – Pre 1945
7 month
Official No. 45708 Code VFLD
Builders Plymouth, William Hole Shilston & Co
Dimensions (1863) Length 96.3ft Breath 20.5ft Depths 11.2ft
Dimensions (1917) Length 95.3ft Breath 21ft Depths 7.1ft

Tonnage
(1863) Gross
124.14 ton Net 99 ton B.D
(1891
.) Gross 124.14 ton Net 98.94 ton B.D
(1906) Gross
124 ton Net 85 ton B.D
(1917) Gross
874.77 ton Net 71.77 ton B.D

Engines None By N/A H.P. N/A
Beached date Pre May 1945
Beached by Capt Frank Savage Bunny Hunt, Bob Green,
Miscellaneous Pl 26/5.8.63 1,2,Sr,ell,cvl – wo fig, wd
F & Ym 63/68/74/79 c.f. 1dk (1906/7)
3rd Island Maid marked as Wrecked in 1909/10 Ll Ashore on Doom Bar 5 saved by Padstow life boat 12 Oct 1911
Westcountry Shipwrecks pp52 (LPB refers to Island Maid 47789 as marked Wrecked in 1911/2 Ll)
21.5.60 Wilf G Rowles advised of fathers role as mate in Corunna cattle trade to Penzance
First Owners 5.8.63 (64) Shilston & Co. Plymouth (W. Hill Medit) (1864 – 1884/5)
Changes

7.7.84 (64) William Hart Cox, Brixham (1884/5 – 1890/1)
22.1.91 (21) Frank Nurse, Gloucester, (22) Henry Edward Field, Saul (21) (1891/2 – 1895) Charles Hyden Nurse, Gloucester
21.2.94 (20) Sarah Elizabeth Field wife of (2)Henry Edward Field Saul, (21) (1891/2 – 1895) Frank Nurse, Gloucester, (21) Charles Henry Nurse, Gloucester,
11.3.95 (11) Charles Henry Nurse, Gloucester (20) Sarah Elizabeth Field wife of (12)Henry Edward Field Saul, (21) (1891/2 – 1895) Frank Nurse, Gloucester,
25.1.97 (20) Sarah Elizabeth Field wife of (23) Hayden Edward Field Saul, (21) (1891/2 – 1895) Frank Nurse, Gloucester.
26.1.97 (43) Hayden Edward Field Saul, (21) (1891/2 – 1895) Frank Nurse, Gloucester.
21.8.97 (43) Frank Gough Saul,(21) Frank Nurse, Gloucester.
7.10.97 (43) Henry Edward Field Saul, (21) (1891/2 – 1895) Frank Nurse, Gloucester.
7.4.98 (64) Alexander Johns, Gloucester. (1906/7 – 1907/8)
16.4.98 (32) Richard Gibbs Foster, Gloucester & (32) Alexander Johns, Gloucester.
9.2.99(16) Edith Mary Foster, wife of (32)Rd Gibbs Foster, Gloucester & (16) Alexander Johns, Gloucester. (1906/7 – 1907/8)
R.C.21.3.07 Dismantled and hulked Plymouth Register.
1818– 1947 G.T. Beard (1929) Ltd., Gloucester (Orby) of 32 Commercial Rd, Gloucester, Arthur S Beard

Historic overview

Born of national pride in the cradle of British shipbuilding tradition, the Island Maid specifically constructed to ply her trade under sail to foreign ports. Early records shows that she was actively engaged in the Mediterranean trade and as such had been sturdily designed to tackle the mountainous seas which were known to frequent the infamous Bay of Biscay. During this time she remained firmly in the ownership of her Plymouth builder and shipping dynasty, Shilston & Co, and later W. H. Shilston who finally relinquished family ownership in 1884.

Despite her many successive ownership changes, The Island Maid remained Plymouth registered until eventually being purchased by Gloucester based ship owner and ships master Alexander Johns in 1903 who continued to trade her until having her recorded as demasted and hulked via the Plymouth Register 21st March 1907

Little is known following this until her arrival at Gloucester in 1917 – 1918 but intriguingly a vessel called the Island Maid was saved by Padstow life boat 12 Oct 1911 Was this Purton’s Island Maid? Research is ongoing

What is known is the Island Maid was never registered but re-registered as the Orby in the Gloucester Registry in September of 1917 and again in the Mercantile List as a barge in the ownership of Gloucester based lighter man G. T. Beard (1929) Ltd. She continued in this guise transporting timber on the S&G canal until her register was eventually closed 17th October 1947. Readers should however note that this register entry has been proven to be incorrect, as recently discovered aerial R.A.F. photography records the Orby in situ on the foreshore during a 24th May 1945 photographic survey.

Historic images

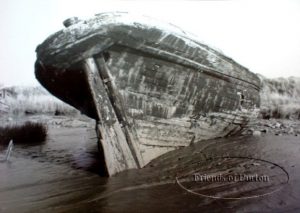

Orby 1952

The Shamrock at Sharpness Swing bridge 6th August 1914 via a Jobert Miles postcard, Dean Heritage Centre (Acc1986.146.1305).

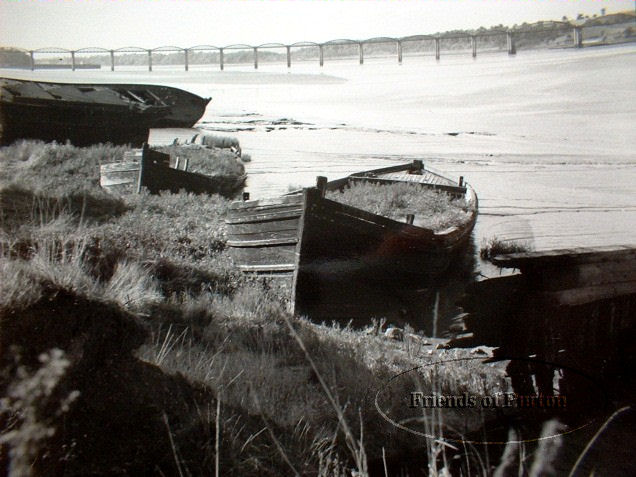

Island Maid 1957

The burnt out bows (extreme right) c. 1957 The David R. MacGregor Collection

Island Maid 1967

The rudder post of the Orby 1967, The Norman Andrews Collection

Recent images

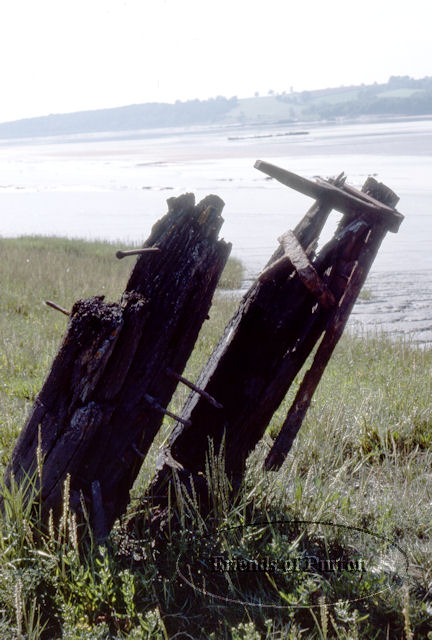

Island Maid 2009

The sum remains of a 95ft coasting schooner, Hamish Fenton Collection 2009

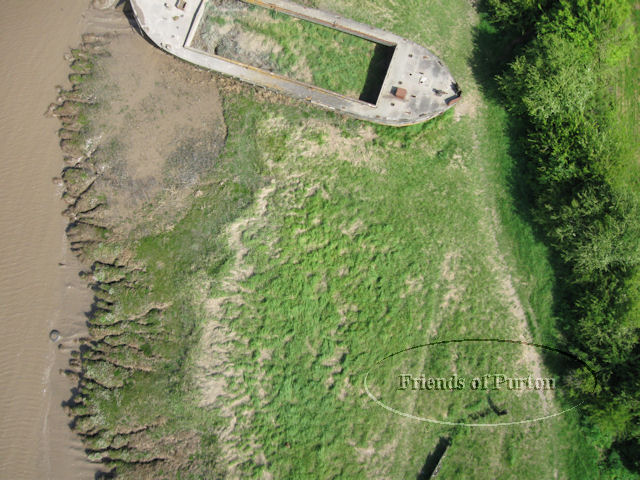

Island Maid 2009

The sea of green, The Hamish Fenton Collection 2009

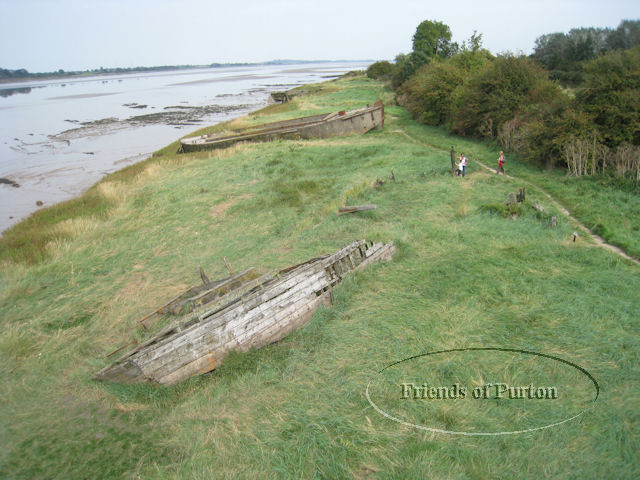

Island Maid 2009

Once the pride of the Plymouth fleet 2009, The L. P. Barnett Collection

Lloyds register

Lloyds Class A1 7/63
Dismantled and hulked R.C.21.3.07 Plymouth Register
Last reg as Island Maid in Ll 1906/7 marked DISMANTLED via Alexander Johns at Plymouth POR
Orby R.C. 17.10.1947 Glos Reg – Obsolete

Mercantile register

Island Maid not registered at Gloucester
Last reg in MNL 1907 as Island Maid via Alexander Johns Gloucester
Not reg as Orby or Island Maid in MNL 1908
Not reg as Orby or Island Maid in MNL 1913
Not reg as Orby or Island Maid in MNL 1914
Not recorded in MNL 1917 as Orby
First reg MNL 1818 as Orby former Island Maid via G. T. Beard of Southgate St Gloucester
Recorded as Orby (converted) in 1920 Mercantile Navy List(LPB)(not 1917)
Recorded as Orby in 1930 Mercantile List
Last reference in 1947 Mercantile Navy List (LPB)
Not recorded in MNL 1951 as Orby (LPB)

Island Maids’ ancillary information

Seen in 24th May 1945 photo
Seen in 26th March 1946 photo
Seen in 1947 photo
Graham Farr via Robin Craig registered not extant 1953
Located at Purton in Rob Schopland’ list of vessels dated 22nd April 1957 and present in his photo of 21st September of the same year.
Island Maid seen in 1974 photos (LPB)
Remains captured in 1982 painting (LPB)
Bristol maritime enthusiast Jim Crissup recorded the unidentified sailing vessels official no 45708 (Orby LPB) and registered tonnage marked 71 77/100 during his 1986 survey.
Never registered as Island Maid at Gloucester (HCJ)

Gloucester Port Closure Register
Name of Ship Port No & Year Official No Remarks Closed
Orby
9-1917
45708
R4/7
17.10.1947
>
Genealogy

William Shilston builder
Wm. H. Cox of Brixham former owner
Charles Nurse former owner
Franck Nurse former owner
Henry E. Field of Saul, former owner
Alexander Johns former owner
George Thomas Beard Gloucester owner
Capt W. Hill first master,
Giles Nurse former master,
Archie Nurse former crew
Harry Rowles former crew
Wilf Rowles descendant of former crew
Capt. Frank Savage – beaching tug Primrose Skipper
Bunny Hunt – beaching crew
Bob Green – beaching helmsmen

Analogue transcripts
From the Oliver Hill Notes

From the Oliver Hill Notes. Folder 12
An interview with Wilf Rowles

Island Maid

OFF NO 45708
In our local graveyard we have the hulk of the little ISLAND MAID in which my father first went to sea at the age of 13 for 2/6 per month and found. They were engaged at that time on the cattle run to Corunna.

Charlie Langford

Crew member of the Tugs Addie, Resolute and Primrose. Date of interview 19.06.03

Charlie identified this vessel as being on the bank at Purton and recalls that she was a large vessel with long and narrow strakes and originally powered by a steam engine, however he further states that he always recalls her as a towed barge.

David MacGregor

David MacGregor

Author. Date of interviews 20th March 2003 & 10th July 2003
David made a verbal/visual identification of the remains of this former schooner and stated she was possibly a sister ship to Shamrock due to elliptical stern. Later he identified her by name and stated that there was very little of her left at his 1952 visit and that her entire forward section had been destroyed by fire missing (photo).

Jim Nurse

Descendant of former owner
see J Nurses notes

A J Parker

PURTON: KEY TO PLAN OF BOAT REMAINS, Reference A. J. Parker (1998)
21 Unknown uncertain (only a ?stem post visible 1997).
21 Island Maid?, schooner (Macgregor 11). Only metal fragments visible 1997. (AJP in SMR484)

Wilf G. Rowles

Author and former tanker skipper of Berkeley, interviewed 23rd March 1960
Island Maid. Schooner, 124 R/T, Official number 45708 IT VFLD.
Dimensions 96.2’ x 24.4’ x 11.2’.
Built by Shilston in Plymouth in July 1863 A Dawe, Master WH Shilston, owner.

The Island Maid was once owned by the Nurse Bros of Gloucester and was in the Corunna cattle trade to Penzance. Giles Nurse was master, Archie Nurse and his cousin Harry Rowles, (author’s Father) were boys in her, their pay being 2/6 per month and found. At this time she was also in the Mediterranean trade. She was eventually reduced to a barge and was running from Sharpness to Gloucester as a timber lighter and then about 20 years ago, she was taken to her final resting place at Purton, the local Ships Graveyard to act as a breakwater on the bank of the Severn. She is now practically all gone.

Further interview with Capt W G Rowles 26th April 1960.

Schooner. International Code VFLD.
Dimensions 96.2’ x 20.4’ x 11.2’. G/T 124, R/T 85,
Official Number 45708.
Port of Registry Plymouth,
built in July 1863 by Shilston at Plymouth.

The Island Maid came under the Nurse ownership around the middle 1870s and was used by them in carrying cattle from Carunna to Penzance. My Dad went to sea in her at the tender age of 13, along with cousin, Archie Nurse. Their pay was 2/6 per month and found, the work consisted of cooking for the crew, tending the cattle for this princely sum.

What a job, rolling down across the Bay of Biscay. They usually took coal out to Lorient. On one particular trip, Capt Giles Nurse, Archie’s Dad, put the boys in the hold shovelling out the coal into baskets. Having a flowing white beard, he reminded the boys to work hard whilst he was away at the brokers. Sometime later, father looked up and saw an old gent looking down at them. Turning to Uncle Arch, he said “who is that old bugger up there”. Marched to the Master’s cabin and given a dressing down, father discovered the old bugger was none other than Capt Giles minus his beard. I liked Uncle Arch, he was very good to me when he was a kid and took me to play marbles by flicking them under the thumb.

Years afterwards he became Master of the Bristol Channel sand dredger Saltom. They had just finished sucking down off the Holmes and Uncle Arch went to his bunk for a lie down, several hours later, he was found dead with his glasses still on his nose. I know it upset my dad for a long time after. They were all marvellous seaman and straight as gunrods. We shall never see the like of them again. They were far better than the moderns will ever know how to be. It was a fantastic experience to be away at sea with them. Seldom did they use a chart, light buoys and beacons being rattled off the tongue as one proceeded.

She was registered in 1906, as 45708. Island Maid, Plymouth,. Schooner, Plymouth, 1863, VFLD, with her owner being Alec Johns of Gloucester.

The vessel was not in the MNL after 1907, so it is presumed that it was at this time that she was stripped down and became a lighter on the Gloucester to Berkeley canal under the ownership of GT Beard, being then re-named the Orby. She followed the Guide to the Purton Graveyard, and up to a few years ago, the rings to which the cattle were tethered, could still be seen.

Unfortunately the ravages of time have dealt harshly with this lovely lady. She had beautiful lines, and in her youth is credited with a fair number of deep water passages, it was nothing for the Nurses to sail to South America and anywhere around the Mediterranean. Uncle Archie Nurse and Dad were boys together in this vessel, earning the magnificent sum of 2 shillings and 6d per month and their grub. No wonder they were grand seaman, all of them, really iron men in wooden ships.

Wilf further provided the following from Graham Farr of Portishead.

The Island Maid was in the Mediterranean Trade in her early days. Her dimensions were 96.2 x 20.4 x 11.2. Tons originally 124. When crew space was legally deducted she had 124 G/T and 85 R/T. As the hulk Orby she was 75 G/T and 72 R/T. She was built by Shilston & Co., having been completed in the 7th month.

Her first master was W. Hill and she was registered at Plymouth until about 1906 when for some reason unknown to me her registry was cancelled. And it was presumably in 1907 that she was turned into a lighter. Then 1917 she was re-registered at Gloucester for Geo. T. Beard.

Changes in ownership 1886 – 1887 to William H Cox, Brixham, 1888 – 1891, Henry E Field, Saul, 1896 – 1898, Alex Johns, Gloucester.

Ray Savage

Skipper of the tug Speedwell and canal man date of interview 29.06.03
Ray remembers that G. T. Beards use to own the Orby and used her to transport timber.

David Wheeler

Guide. Schooner 136 R/T ON 25803 Int Code PHMD.
Dimensions 98.0’ x 17.7’ x 11.2’. Built at Dartmouth in 1854. Restored in 1873 and was then F & YM overpart. My 1882-3 Lloyds Register gives her master as Elliot, her owner as F Nurse, P/R Weymouth. She was under the Nurse ownership for a good many years, and was engaged in carrying cattle from Corunna to Penzance. When Capt George Nurse was master, she was coming down the Irish Sea and he went aloft to look for the South Stack Light, it being mucky weather, when he slipped and fell overboard, never to be seen again. Aunt Pollie Nurse formerly Rowles, his wife, was about to leave Saul to join him somewhere when she received the sad news. It is reputed that the vessel became a total loss in the River Ribble, Lancs, when bound to Plymouth with a full cargo of coal from Preston, but such is not the case. Whatever troubles she encountered, she came back to Saul and was stripped down, being purchased by G T Beard of Gloucester, who changed her name to Shamrock. She worked on the canal between Gloucester and Sharpness until the middle 1930’s, when she was taken to the Purton ship graveyard, a couple of miles from my home. She can still be recognised as one of the lovely little ladies of Severnside, in fact I crawled around her only a month ago. Speaks well of the builders to last over 120 years.

Ray Savage

Skipper of the tug Speedwell and canal man date of interview 29.06.03
Ray identified the Shamrock by name and recalls that photograph was taken by local man Jobert Miles.

David Wheeler

David failed to record the vessel during his early 1957 survey, however he did record the official No. 45708 on the wreck upon his return in 1959. This however was not repeated in his later visit of 1961 and as David suggests this may be a result of her timbers being destroyed, sunk/buried or indeed being removed in some other way. This however is further confused as he once again recorded timbers in this approximate location during his final visit in June 1965 as “Stern and timbers of wooden vessel”

Archaeology
Phase one report
